ZPT-3216B
ZPT-3216B-19-R15 是一种小型 SMD 封装的光电晶体管，用球形顶视透镜在黑色中成型。 该器件与可见光和红外发射二极管光谱匹配。
ZPT-3216B-19-R15 is a phototransistor in miniature SMD package which is molded in a black with spherical top view lens. The device is Spectrally matched to visible and infrared emitting diode.
Features
特性 Feature
--感应速度快、感光度强
Fast response time 、High photo sensitivity
--无铅材料、Rosh 认证
Pb.Free 、RoHS compliant version
Other Applications
应用 Application
--红外应用系统、光电开关、复印机、扫描仪、洗衣机
Infrared applied system 、Optoelectronic switch 、Copiers 、Scanners 、Amusement machines
Specification

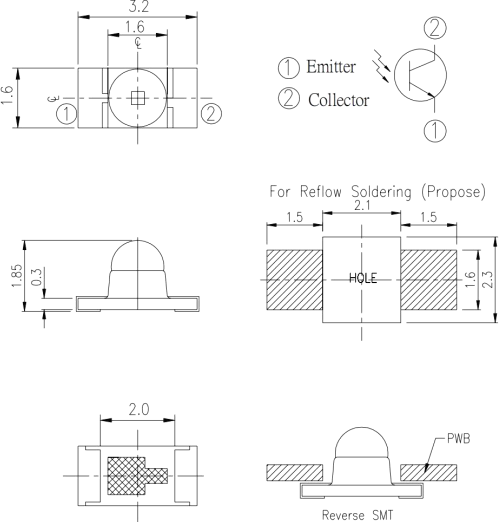

产品尺寸 Package Dimension
备注 Notes:
--所有尺寸为毫米标识
All dimensions are in millimeters
--未标识尺寸正负公差为 0.3mm
Tolerances unless dimensions ±0.3mm

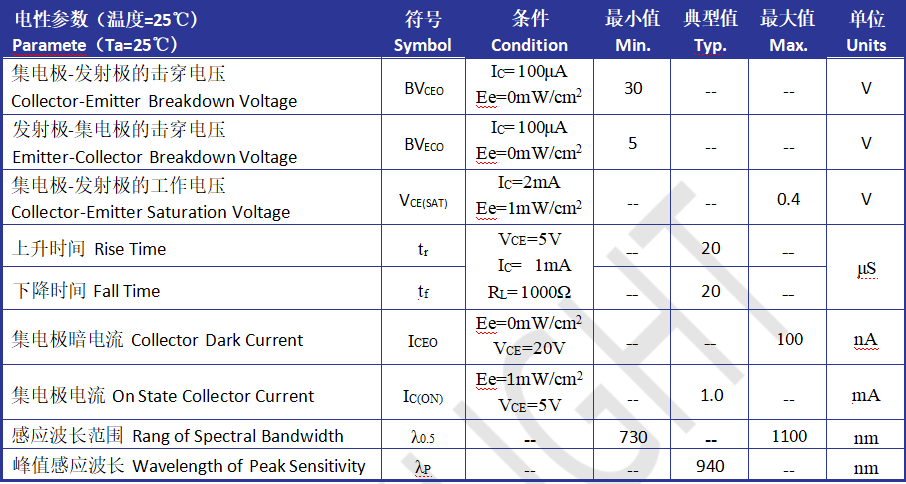

光电特性 Electro-Optical Characteristics

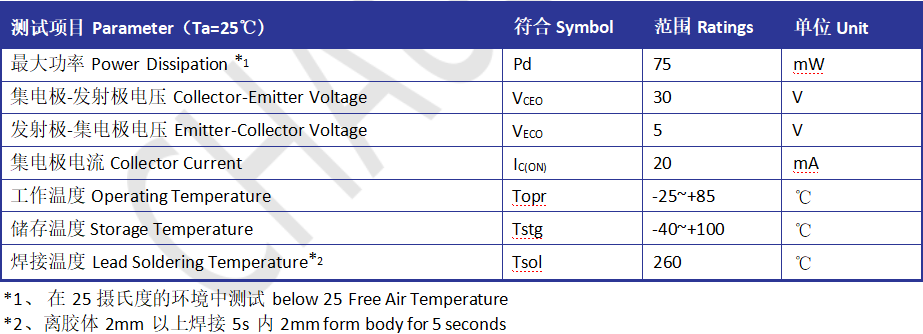

最大额定值 Absolute Maximum Ratings
