ZG3P28C
ZG3P28C 是一种高亮度发光二极管，透明的封胶外形。 该材料可单独使用也可 以与光电晶体管、光电二极管和红外接收模块进行配对。
The ZG3P28C is a high intensity diode , molded in a water plastic package. The material can be used alone or paired with a phototransistor, photodiode and an infrared receiving module
Features
特性 Feature
--可靠性高、发光亮度高、低电压驱动
High reliability 、High radiant intensity 、Low forward voltage
--主波长 λd=520nm
Dominant wavelength λd=520nm
--无铅材料、RoHS 认证
Pb.Free 、RoHS compliant version
Other Applications
应用 Application
--警示灯、家用电器、光电开关、景观灯
Caution light 、Domestic appliance 、switch 、landscape light
Specification
产品尺寸 Package Dimension
备注 Notes:
--所有尺寸为毫米标识
All dimensions are in millimeters
--未标识尺寸正负公差为 0.3mm
Tolerances unless dimensions ±0.3mm

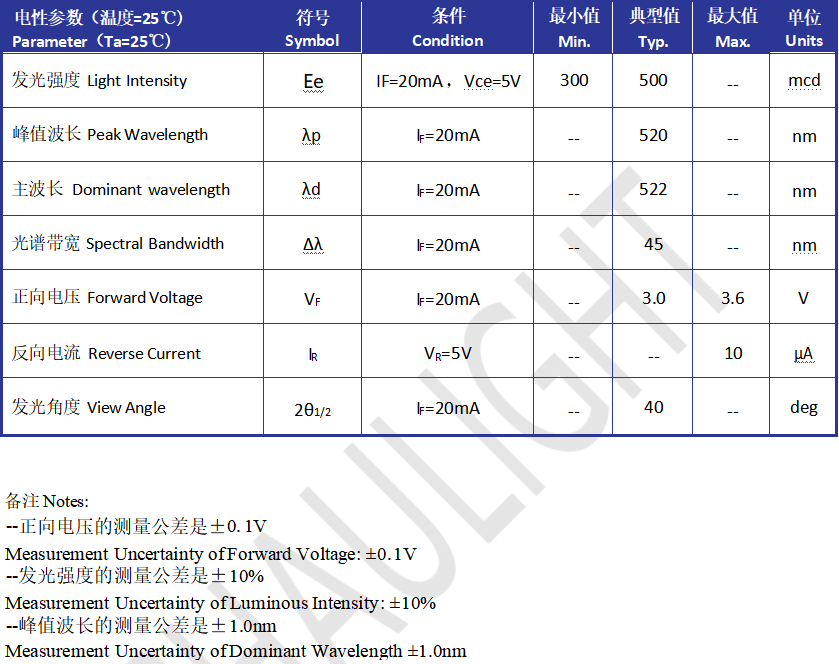

光电特性 Electro-Optical Characteristics
最大额定值 Absolute Maximum Ratings
