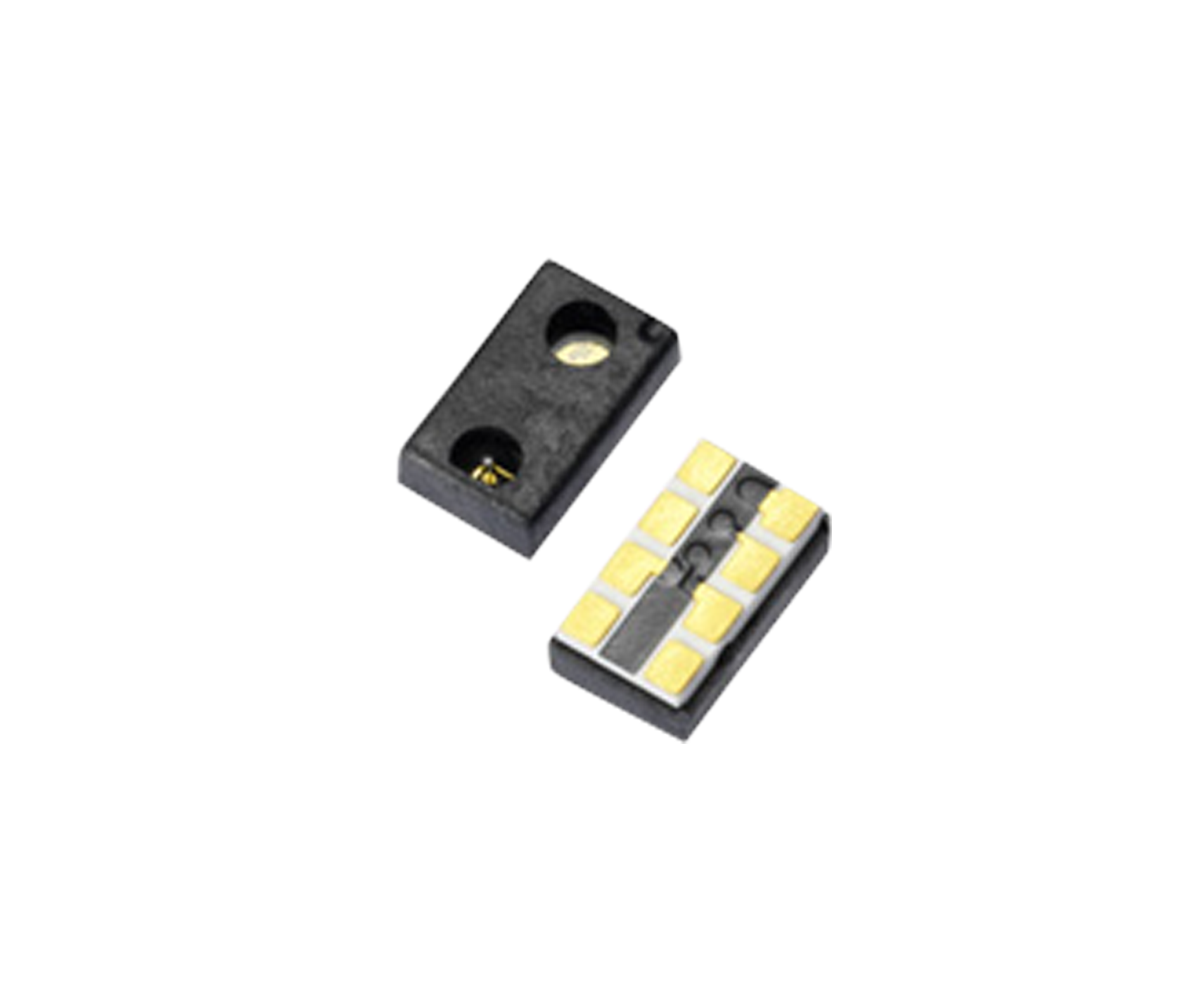

ZAPM-R4024C-14DV-Z1
ZAPM-R4024C-14DV-Z1 设备将执行色温、环境光传感（ALS）和接近检测传感。内部状态机提供了将设备置于 接近和 ALS 测量之间的低功率状态的能力，提供了非常低的平均功耗。
The ZAPM-R4024C-14DV-Z1 device will perform color temperature, ambient light sensing ( ALS ) and proximity
detection sensing.An internal state machine provides the ability to put the device into a low power state between proximity and ALS measurements providing very low average power consumption.
特性 Feature
•环境光（ALS）及红外传感器.
• ALS, Ambient Light and IR Sensor.
•色温和环境光传感.
•Color Temperature and Ambient Light Sensing.
-紫外线/红外屏蔽滤波器、16 位分辨率.
-UV/IR blocking filters、16 Bit resolution.
-可编程的增益和集成时间.
-Programmable Gain & Integration Time.
-可控的调整时间、高灵敏度.
•接近检测.
•Proximity Detection.
-可编程偏移控制寄存器可编程.
- Programmable Offset Control Register Programmable.
-可编程模拟增益和集成时间.
- Programmable Analog Gain and IntegrationTime.
-外部红外指示灯的当前水槽驱动器.
-Current Sink Driver for External IR LED.
-Ideal for Operation Behind Dark Glass、Very High Sensitivity.
•小尺寸的全接近传感器.
• Full proximity sensor feature in tiny package size.
-4.0mm x 2.4mm x 1.35mm .
- 4.0mm x 2.4mm x 1.35mm . -16 位分辨率的 A/D 转换.
- 16 bit ADC.
-集成 940nm 210mW Vcsel.
- Integrated 940nm 210mW Vcsel.
•可编程式接近度检测和中断.
•Programmable Proximity Detection and Interrupt.
-可编程 ADC ，LED 驱动程序参数.
-Programmable ADC, LED driver parameters.
-可编程中断生成条件.
- Programmable Interrupt generation conditions.
•SUBI2C 接口兼容性
• I2C Interface Compatible
-最多为 400kHz（I2C 快速模式）.
- Up to 400kHz (I2C Fast Mode).
-OTP 可选设备地址：0x39,0x3D(7bit).
- OTP selectable device addr. : 0x39, 0x3D (7bit). -I2C H 级范围：1.8V 至 5V.
- I2C H-level range: 1.8V to 5V.
•功率管理.
•Power Management.
-电源电压范围：2.5V 至 5V.
- Supply voltage range: 2.5V to 5V
-低功率 1uA 睡眠状态.
- Low Power 1uA Sleep State.
-70uA 的待机状态与可编程的待机时间.
- 70uA Wait State with Programmable Wait Time.
应用 Application
--环境光感应，色温感应，手机触摸屏禁用，机械开关更换，自动扬声器启用， 自动菜单弹出.
--Ambient Light Sensing 、Color Temperature Sensing 、Cell Phone Touch Screen Disable 、Mechanical Switch Replacement 、Automatic Speakerphone Enable 、Automatic Menu Popup.

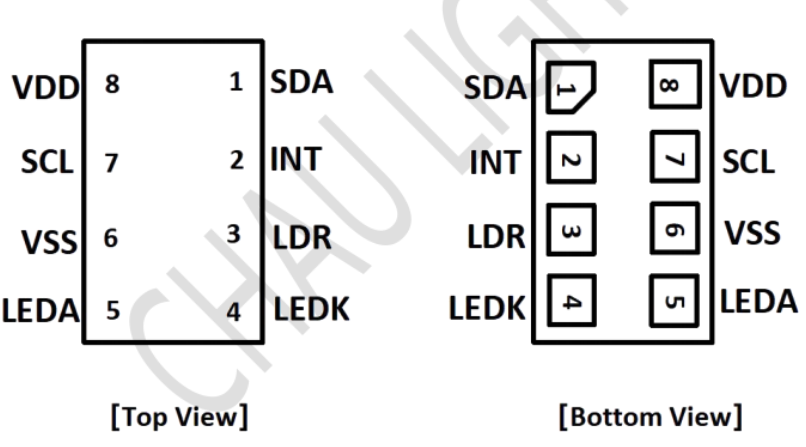

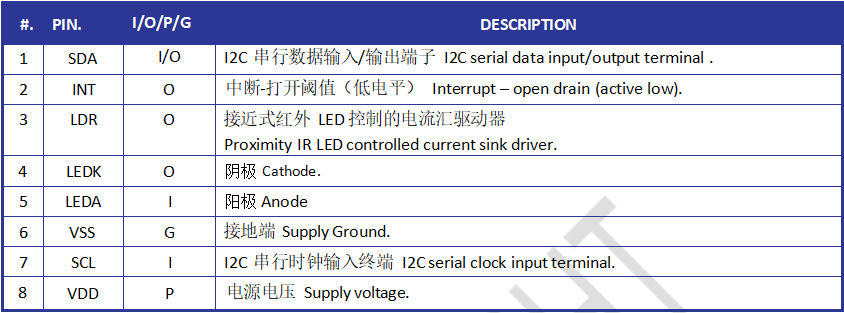

管脚配置和功能 Pin Configuration and Functions
产品规格 Product Specifications.
1、绝对最大额定参数 Absolute Maximum Ratings.
*超出“绝对最大额定参数 ”所列的应力可能会对设备造成永久性损坏。此仅为应力等级，并不暗示设备 在这些或任何其他条件下的功能操作，超出了在“推荐操作条件 ”下指示的功能操作。长时间暴露于绝对最 大额定条件下可能会影响设备的可靠性。
*Stresses beyond those listed under“absolute maximum ratings ”may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those
indicated under “recommended operating conditions ” is not implied. Exposure to absolute- maximum-rated conditions for extended periods may affect device reliability.
注：所有电压值均与 VSS 有关。
Note : All voltage values are with respect to VSS.

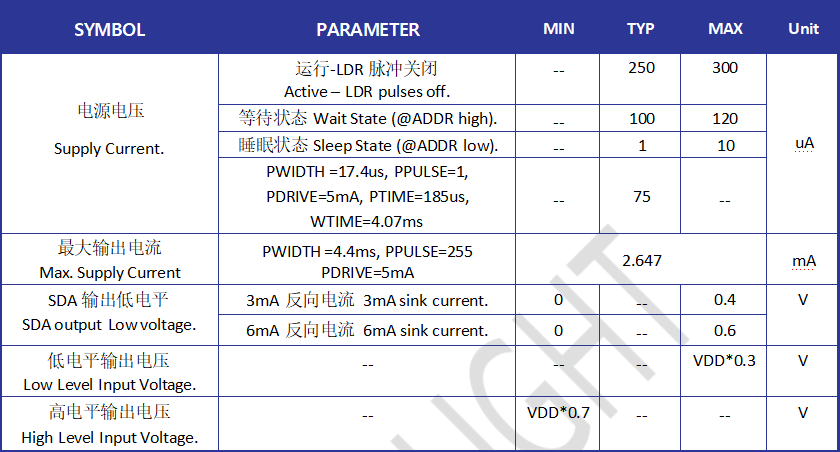

电气特性(VDD=3V，Ta=25℃) Electrical Characteristics ( VDD = 3V, Ta = 25℃ ).

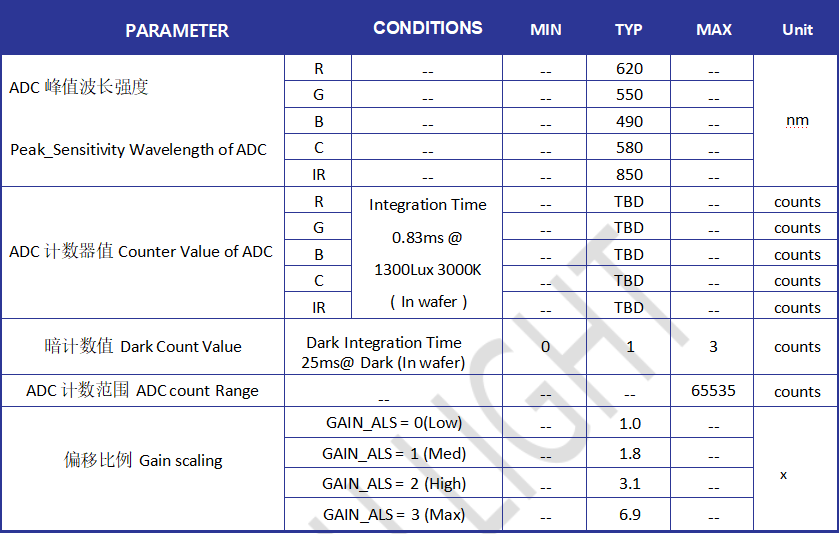

ALS+IR 特性 ALS+IR Characteristics ( VDD = 3V, Ta = 25℃, PEN = 1 )

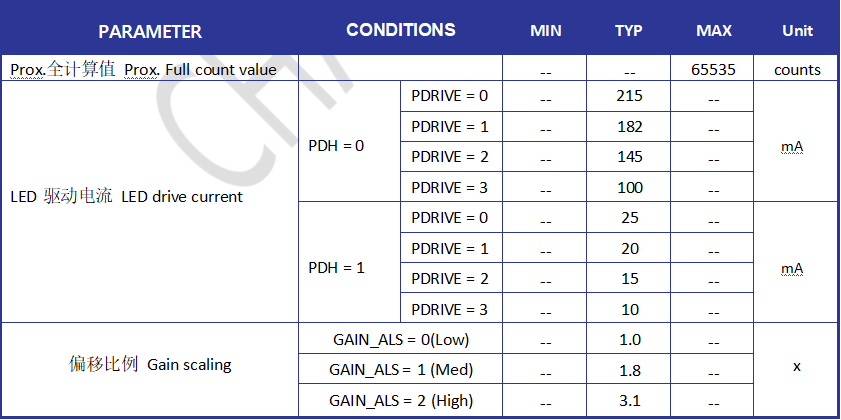

接近特性 Proximity Characteristics ( VDD = 3V, Ta = 25℃, PEN = 1 )
