ZCS-2016C-08D-Z4
ZCS-2016C-08D-Z4 设备可进行色温测量、亮度传感。内部状态机提供了将设备置于色温测量之间的低功率状态 的能力，非常低的平均功耗。
ZCS-2016C-08D-Z4 device will perform color temperature measurement, brightness sensing. An internal state
machine provides the ability to put the device into a low power state between color temperature measurement providing very low average power consumption.
特性 Feature
•色温及环境光传感.
• Color Temperature and Ambient Light Sensing.
-低功率运行.
- Low Power Management .
-16 位分辨率.
-16 Bit resolution.
-可编程的增益和集成时间.
-Programmable Gain & Integration Time.
- I2C 快速模式接口兼容.
- I2C Fast Mode Interface Compatible .
-红外阻塞滤波器.
- IR blocking filters.
•运行功率.
• Power Management.
-低功率 1uA--睡眠状态.
-Low Power 1uA Sleep State.
•SUBI2C 接口兼容性
• I2C Interface Compatible
-最多为 400kHz（I2C 快速模式）.
-Up to 400kHz (I2C Fast Mode).
-设备地址：7‘b1000_011（R ，ADDR float）7 ’b1000_010（R ，ADDR 低）.
- Device address : 7 ’b1000_011 ( R/W, ADDR float ) 7 ’b1000_010 ( R/W, ADDR low ).
应用 Application
--亮度传感器、彩色温度传感器、 小笔记本、 穿戴设备、工业及医疗应用
Brightness Sensing 、Color Temperature Sensing 、Notebook 、Handheld device 、Industrial and medical application.

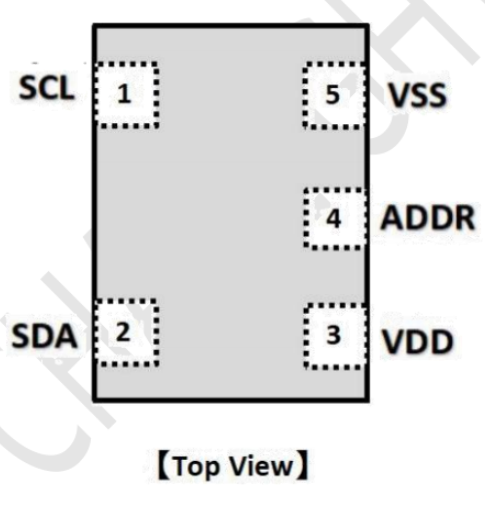

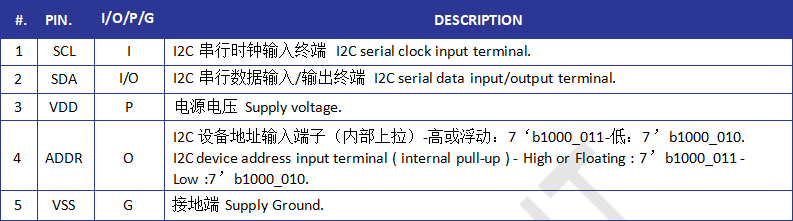

管脚配置和功能 Pin Configuration and Functions

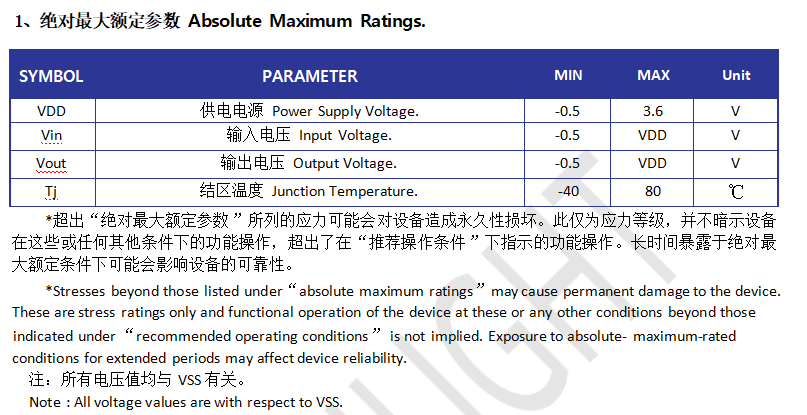

产品规格 Product Specifications.

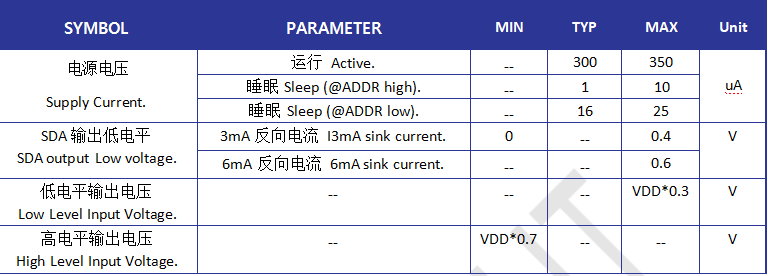

电气特性(VDD=3V，Ta=25℃) Electrical Characteristics ( VDD = 3V, Ta = 25℃ ).

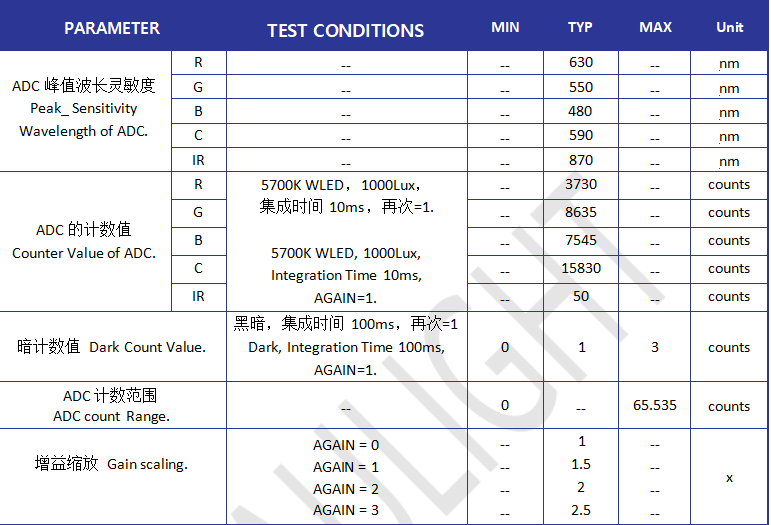

光学特性(VDD=3V，Ta=25℃) Optical Characteristics ( VDD = 3V, Ta = 25℃ ).
