0805-1.0T

0805-1.0T

0805-1.0T 是一种高辐射发光二极管，透明的封胶外形。该材料与光电晶体管、
光电二极管和红外接收模块进行配对。
0805-1.0T is an infrared emitting diode in miniature SMD package which is molded
in a water clear plastic with spherical top view lens. The device is spectrally matched with
silicon photo diode and photo transistor.

样品和咨询
Features
特性 Feature
--可靠性高、辐射强度高、低电压驱动
High reliability、High radiant intensity、Low forward voltage
--发射波长 940nm
Peak wavelength λp=940nm
--无铅材料、RoHS 认证
Pb.Free、RoHS compliant version
Other Applications
应用 Application
--红外摄像头、遥控器、光电开关、打印机
Camera、Remote、switch、printer
Learn More
No. File Name Update Donwload
0805-1.0T 0805-1.0T规格书下载 788 KB
Specification
最大额定值 Absolute Maximum Ratings
*1、 在 25 摄氏度的环境中测试 below 25 Free Air Temperature.
*2、脉宽少于等于 100us，占空比 1% Pulse width≦100μs,Duty cycle= 1%.
*3、离胶体 2mm 以上焊接 5s 内 2mm form body for 5 seconds.

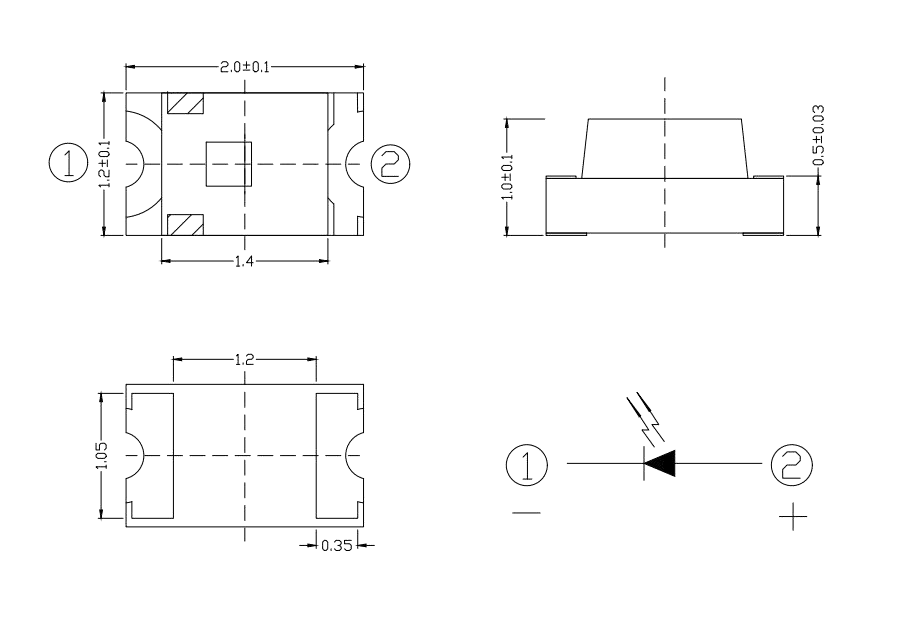

产品尺寸 Package Dimension
备注 Notes:
--所有尺寸为毫米标识
All dimensions are in millimeters
--未标识尺寸正负公差为 0.3mm
Tolerances unless dimensions ±0.3mm
光电特性 Electro-Optical Characteristics

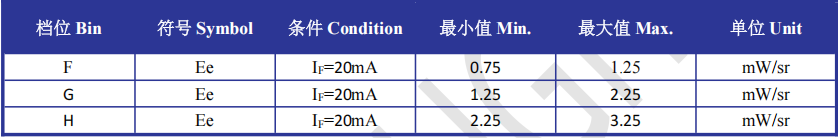

等级档位 Rank
备注 Notes:
--正向电压的测量公差是±0.1V
Measurement Uncertainty of Forward Voltage: ±0.1V
--发光强度的测量公差是±10%
Measurement Uncertainty of Luminous Intensity: ±10%
--峰值波长的测量公差是±1.0nm
Measurement Uncertainty of Dominant Wavelength ±1.0nm
