0603-0.6T

0603-0.6T

此材料比直插式组件小，从而板的尺寸更小，堆积密度更高，占用空间减少，最终获得更小的设备。
The Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained․

样品和咨询
Features
特性 Feature
--发光角度大
Extremely wide viewing angle
--适用于所有的SMT 组装和焊接工艺、适用于载带及卷轴
Suitable for all SMT assembly and solder process、Available on tape and reel
--无铅材料、Rohs 认证
Pb.Free、RoHS compliant version
Other Applications
应用 Application
--光学指示、室内显示、LCD 背光、转换器，开关和标志，显示器等、一般应用
Optical indicator、Indoor display、Backlight for LCD, switch and Symbol, display、 General use
Learn More
No. File Name Update Donwload
0603-0.6T 0603-0.6T规格书下载 593 KB
Specification

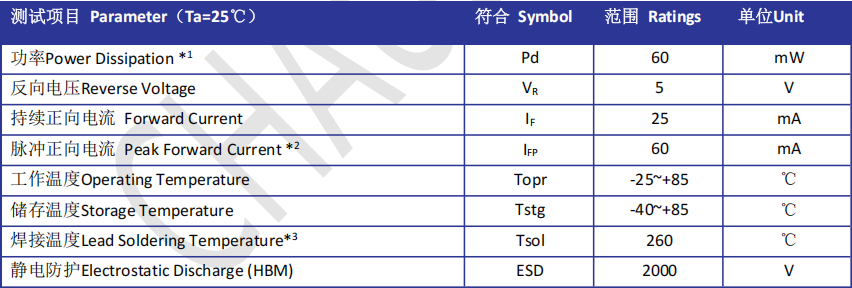

最大额定值 Absolute Maximum Ratings
*1、 在 25 摄氏度的环境中测试 below 25 Free Air Temperature
*2、回流焊：260 度 5 秒钟内、手焊：350 度 3 秒钟内
Reflow Soldering : 260℃ for 5 sec、Hand Soldering : 350℃ for 3 sec
产品尺寸 Package Dimensio
备注Notes:
--所有尺寸为毫米标识
All dimensions are in millimeters
--未标识尺寸正负公差为 0.3mm
Tolerances unless dimensions ±0.3mm

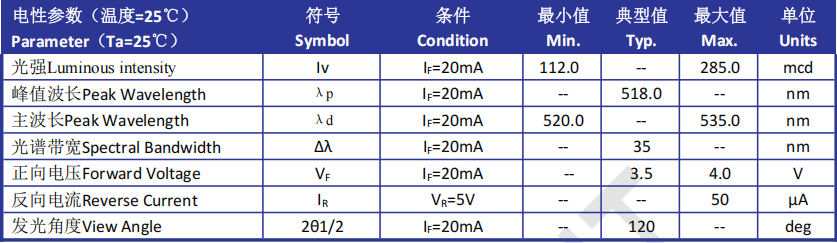

光电特性 Electro-Optical Characteristics

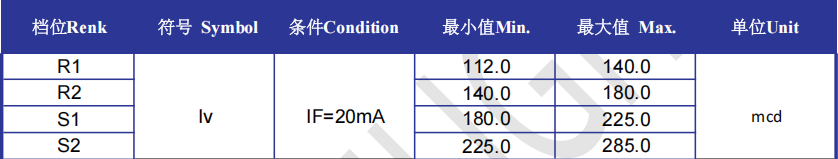

亮度档位 Luminous Intensity Rank Combination

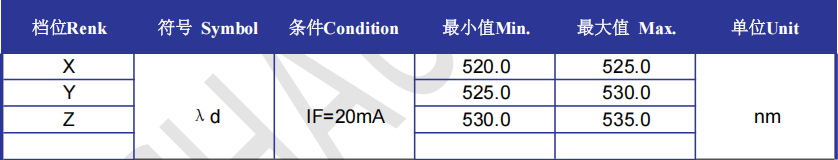

波长档位 Dominant wavelength Rank Combination
备注Notes:
--正向电压的测量公差是±0.1V Measurement Uncertainty of Forward Voltage: ±0.1V
--发光强度的测量公差是±10% Measurement Uncertainty of Luminous Intensity: ±10%
--峰值波长的测量公差是±1.0nm Measurement Uncertainty of Dominant Wavelength ±1.0nm
