ZPT868B-F12
ZPT868B-F12 是一个微型封装的光电晶体管，它是在一个黑色塑料压模成型 材料，该器件与红外发射二极管的光谱匹配。
The ZPT868B-F12 is a miniature encapsulated phototransistor, it is in a black transparent plastic pressure molded material, the device with infrared emitting diode spectrum matching.
Features
特性 Feature
--感应速度快、感光度强
Fast response time 、High photo sensitivity
--无铅材料、RoHS 认证
Pb.Free 、RoHS compliant version
Other Applications
应用 Application
--红外应用系统、光电开关、复印机、扫描仪、洗衣机
Infrared applied system 、Optoelectronic switch 、Copiers 、Scanners 、Amusement machines
Specification

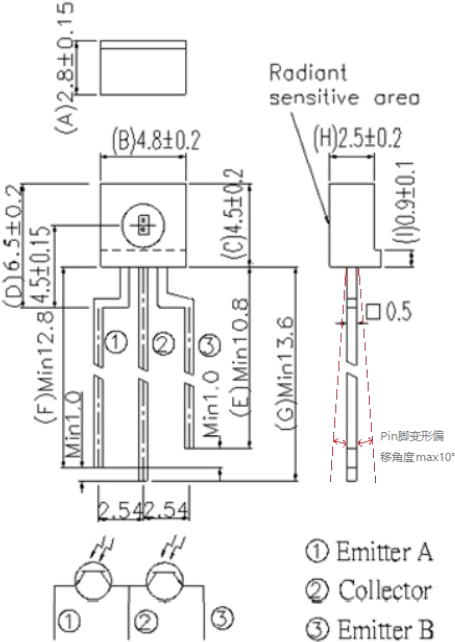

产品尺寸 Package Dimension
备注 Notes:
--所有尺寸为毫米标识
All dimensions are in millimeters
--未标识尺寸正负公差为 0.3mm
Tolerances unless dimensions ±0.3mm

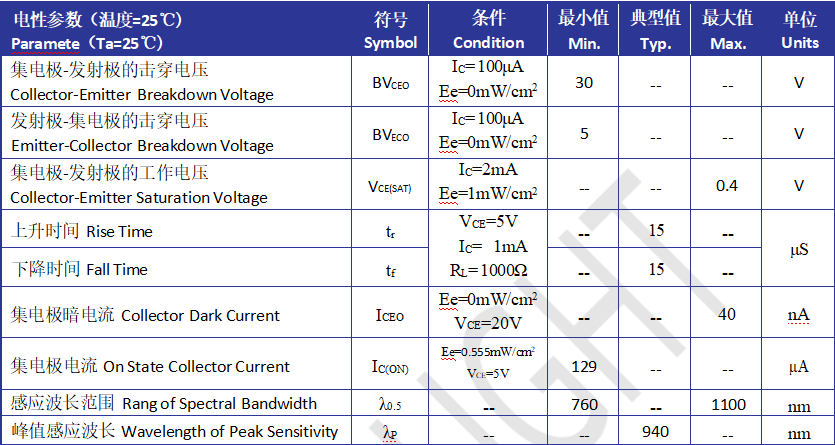

光电特性 Electro-Optical Characteristics

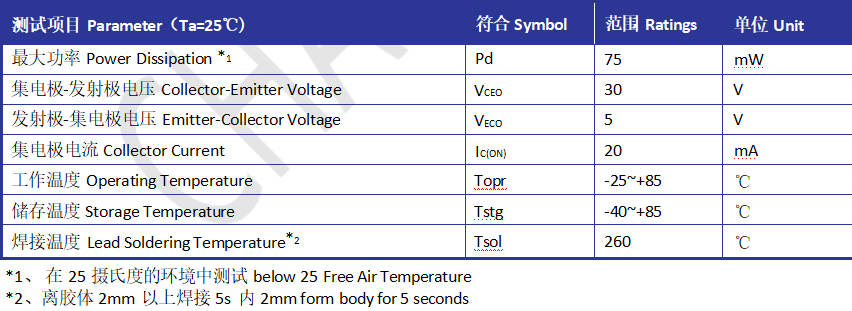

最大额定值 Absolute Maximum Ratings
