ZPTP88B
ZPTP88B 是一款高速高灵敏度 NPN 硅光电晶体管采用标准 φ2 mm 封装成型。由于其透明环氧树脂， 该器件是对可见光和近红外辐射敏感。
The ZPTP88B The is a high speed and high sensitive NPN silicon phototransistor molded in a standard φ2 m
mpackage.Due to its clear epoxy the device is sensitive to visible and near infrared radiation.
Features
特性 Feature
--快速相应时间.
Fast response time
--高灵敏度.
High photo sensitivity.
--无铅材料、RoHS认证
Pb.Free 、RoHS compliant version.
Other Applications
应用 Application
--红外应用系统、光电开关、打印机
Infrared applied 、switch 、printer
Specification

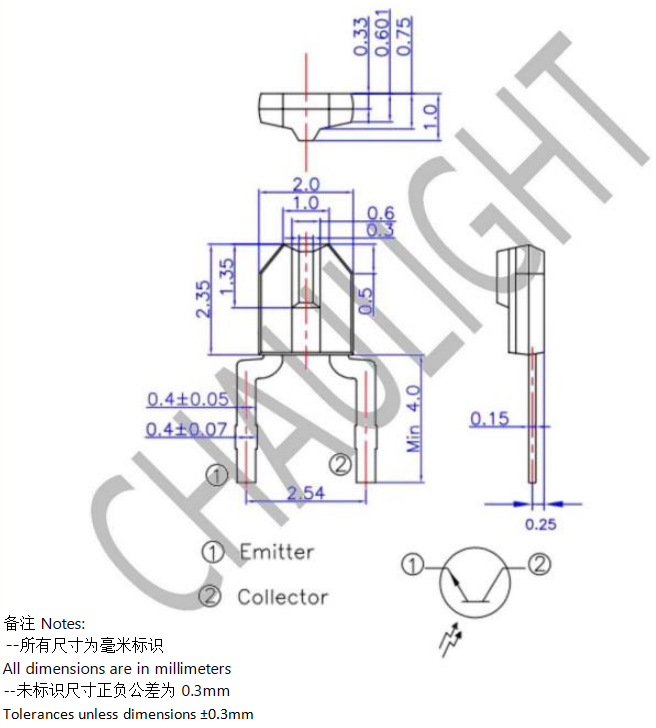

产品尺寸 Package Dimension

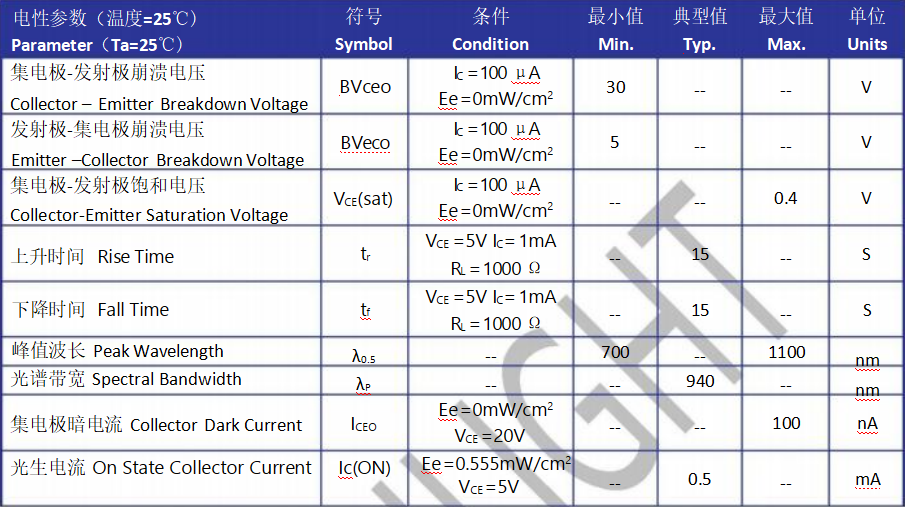

光电特性 Electro-Optical Characteristics

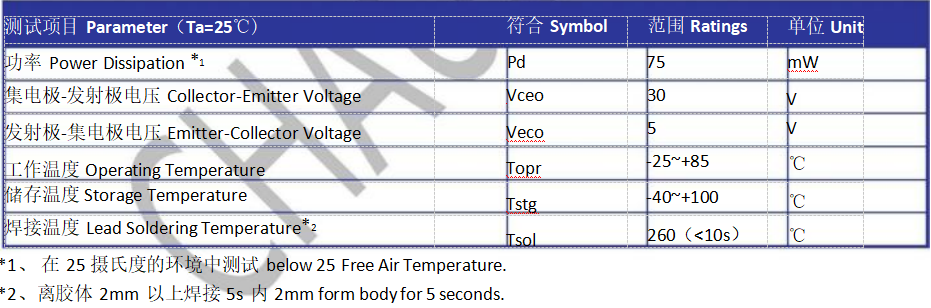

最大额定值 Absolute Maximum Ratings
