ZIRP88C
ZIRP88C 是一种高辐射强度二极管，透明的封胶外形。 该材料与光电晶体管、光电二极管和红外接收模块进行配对。
The ZIRP88C is a high intensity diode , molded in a water plastic package. The device is spectrally matched with phototransistor , photodiode and infrared receiver module.
Features
特性 Feature
--可靠性高、辐射强度高、低电压驱动
High reliability 、High radiant intensity 、Low forward voltage
--发射波长 940nm
Peak wavelength λp=940nm
--无铅材料、RoHS 认证
Pb.Free 、RoHS compliant version
Other Applications
应用 Application
--红外摄像头、遥控器、光电开关、打印机
Camera 、Remote 、switch 、printer
Specification

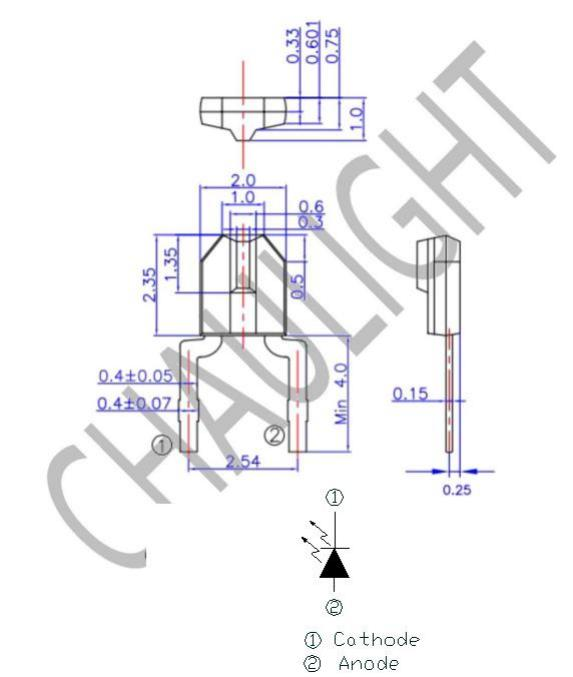

产品尺寸 Package Dimension
备注 Notes:
--所有尺寸为毫米标识
All dimensions are in millimeters
--未标识尺寸正负公差为 0.3mm
Tolerances unless dimensions ±0.3mm

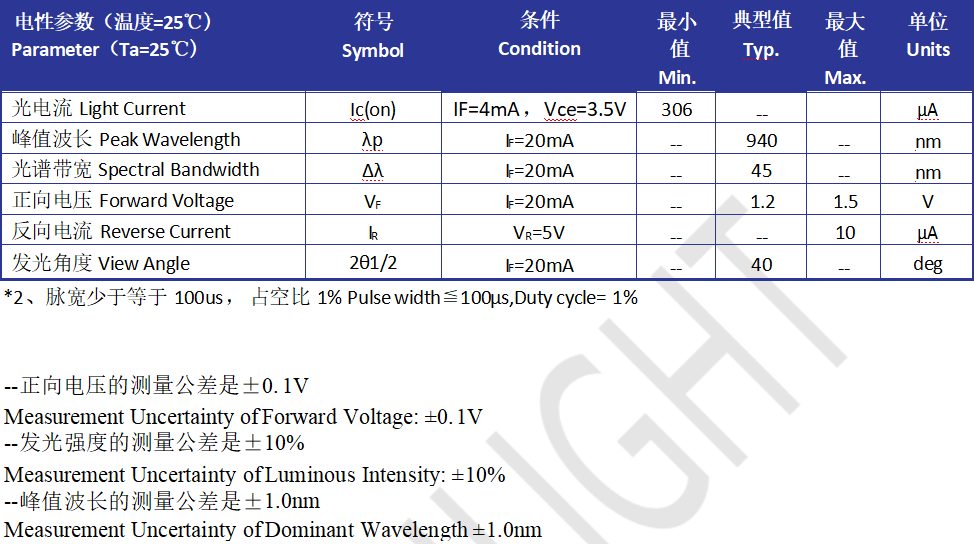

光电特性 Electro-Optical Characteristics

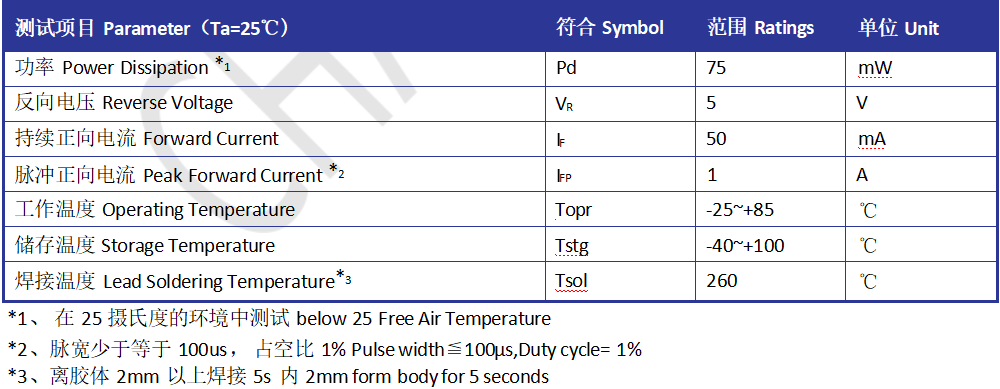

最大额定值 Absolute Maximum Ratings
